Raspberry Pi Camera Module 5MP HD Imaging with Advanced Automatic Control for Stable and Low-Light Performance
Dettagli:
| Luogo di origine: | Cina |
| Marca: | Sinoseen |
| Certificazione: | RoHS、ISO9001、CE |
| Numero di modello: | XLS-SM451-V1.0 |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 5 |
|---|---|
| Prezzo: | negoziabile |
| Imballaggi particolari: | Tavolo+Bassa antistatica in cartone |
| Tempi di consegna: | 2-3week |
| Termini di pagamento: | T/T |
| Capacità di alimentazione: | 500000 pezzi/mese |
|
Informazioni dettagliate |
|||
| Tipo:: | Modulo della macchina fotografica del lampone pi | Sensore:: | OV5647 |
|---|---|---|---|
| Risoluzione:: | 1920*1080 | Dimensioni:: | 38mmx38mm (compatibile con 32mmx32mm) |
| Evidenziare: | Stable Raspberry Pi Camera Module,Low-Light Raspberry Pi Camera Module,5MP HD Imaging Camera Module |
||
Descrizione di prodotto

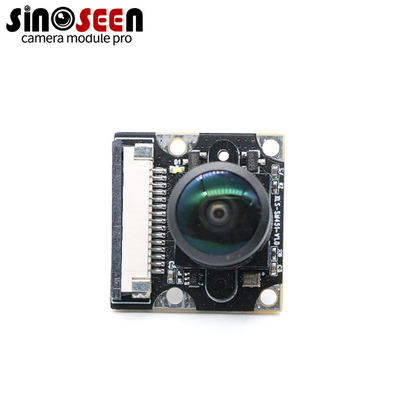

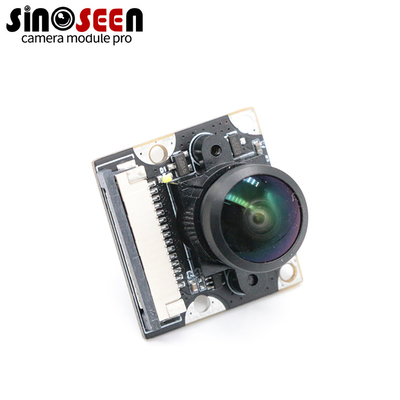

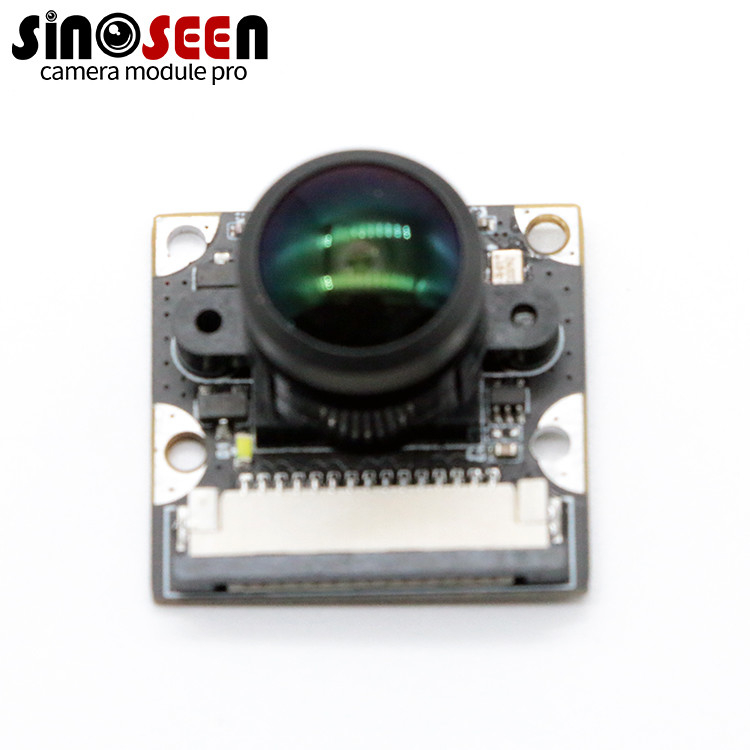

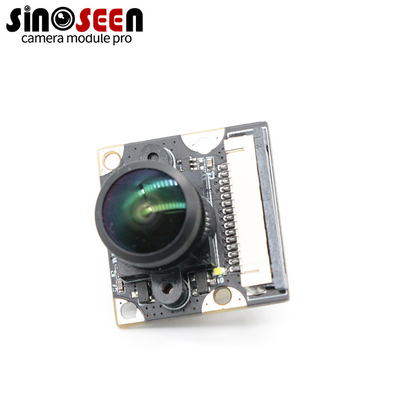

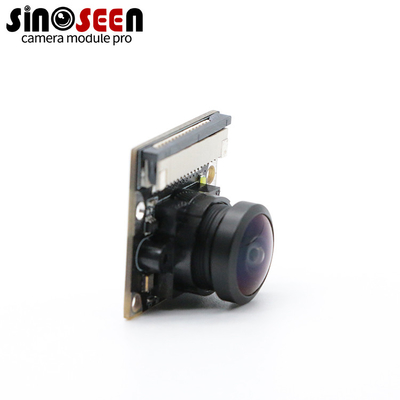

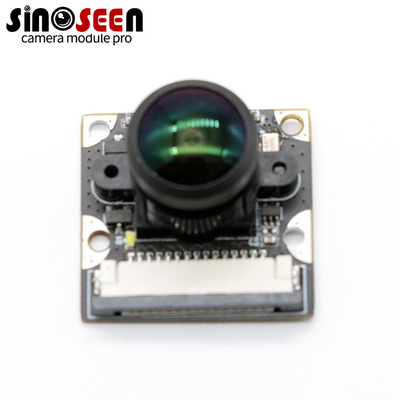

Designed for Raspberry Pi, the Sinoseen OV5647 camera module features the OmniVision OV5647 image sensor with 1.4-micron pixel OmniBSI™ technology. It ensures high-quality images are captured in all lighting conditions with its superior high sensitivity, low noise, and low crosstalk performance.
The module is capable of outputting images at 1920x1080 (Full HD) resolution and supports programmable control of frame rate, lens correction, and defective pixel elimination. It integrates comprehensive automatic image control functions, including automatic exposure control (AEC), automatic gain control (AGC), and automatic white balance (AWB), greatly simplifying use. The OV5647 module supports 8-/10-bit raw RGB output for video or snapshot operation, and has an LED/flash strobe mode. Its size is 38mmx38mm, compatible with a 32mmx32mm mounting size for easy integration. Whether it is for digital camera applications, machine vision projects, or imaging solutions that require high-definition, stable and excellent low-light performance, this OV5647 module can meet your needs.
Product Highlights
- Designed for Raspberry Pi: strong compatibility and easy integration.
- High sensitivity and low noise: 1.4 micron pixel OmniBSI™ technology, optimized low-light imaging.
- 5MP HD imaging: supports 1920x1080 resolution output.
- Fully automatic image control: with AEC, AGC, AWB and other functions, simplifying operation.
- Flexible and programmable: support frame rate, lens correction and defect pixel elimination control.
