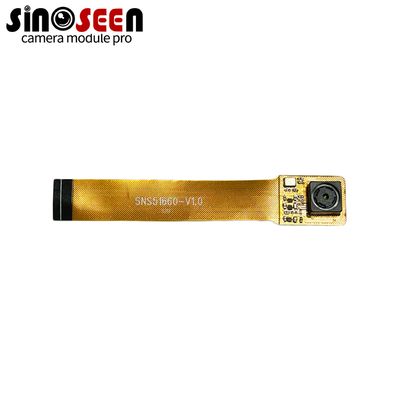

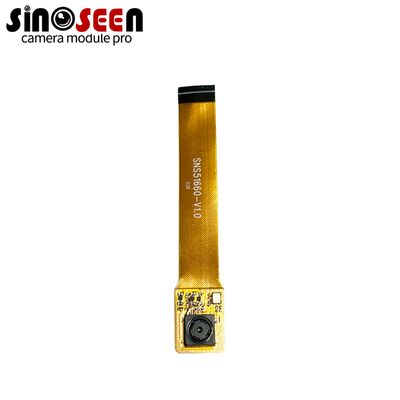

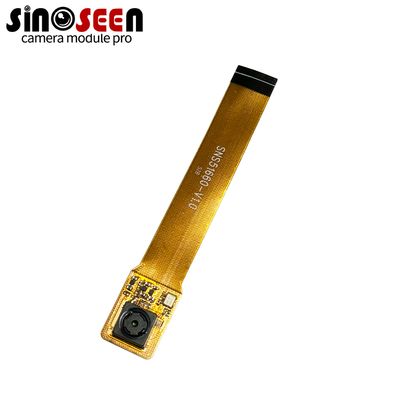

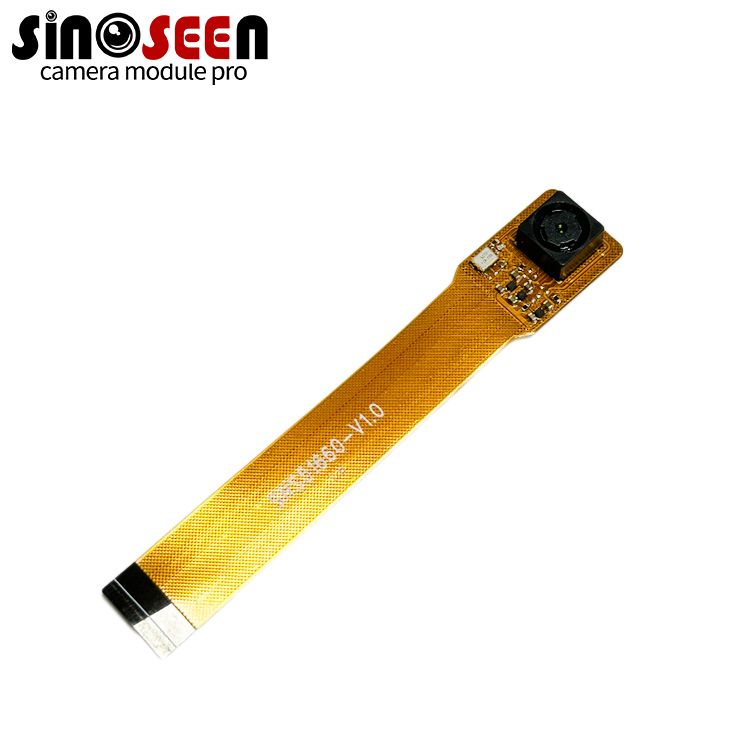

5MP OV5647 Raspberry Pi Camera Module with OmniBSI Technology
Dettagli:
| Luogo di origine: | Cina |
| Marca: | Sinoseen |
| Certificazione: | RoHS、ISO9001、CE |
| Numero di modello: | XLS51660-V1.0 |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 5 |
|---|---|
| Prezzo: | 10-100USD or negotiable |
| Imballaggi particolari: | Vassoio+borsa anti-statica nella scatola del cartone |
| Tempi di consegna: | 2-3 settimane |
| Termini di pagamento: | T/t |
| Capacità di alimentazione: | 500000 pezzi/mese |
|
Informazioni dettagliate |
|||
| Tipo:: | Modulo della macchina fotografica del lampone pi | Sensore: | OV5647 |
|---|---|---|---|
| Risoluzione: | 1920*1080 | Dimensioni: | 38mmx38mm (compatibile con 32mmx32mm) |
| Evidenziare: | 5MP Raspberry Pi camera module,OV5647 camera module with OmniBSI,Raspberry Pi camera with warranty |
||
Descrizione di prodotto
| Attribute | Value |
|---|---|
| Type | Raspberry PI Camera Module |
| Sensor | OV5647 |
| Resolution | 1920×1080 |
| Dimensions | 38mm×38mm (compatible with 32mm×32mm) |
| Highlights | Raspberry PI Camera Module, Machine Vision OV5647 Camera Module |
The OV5647 camera module is purpose-built for Raspberry Pi applications, featuring OmniVision's 1/4-inch 5-megapixel OV5647 sensor. With OmniBSI™ technology, it delivers high sensitivity, low noise, and minimal crosstalk for exceptional imaging quality.
The module supports resolutions up to QSXGA (2592×1944) and full HD 1080p output, making it ideal for embedded vision and digital camera projects.
- Raspberry Pi compatibility for seamless integration
- 5MP resolution with 2592×1944 image output
- OmniBSI™ pixel technology for high sensitivity and reduced noise
- Multiple formats: 8-/10-bit raw RGB output
- Automatic functions: AEC, AGC, AWB for simplified operation
- Supports LED/flash strobe, subsampling, and frame synchronization
We offer customized design services, including lens options, PCB layouts, firmware optimization, and interface adjustments to meet project-specific requirements.
Sinoseen is a leading provider of professional camera modules for industries worldwide. With advanced R&D and manufacturing capabilities, we deliver high-quality, reliable, and customizable imaging solutions.
