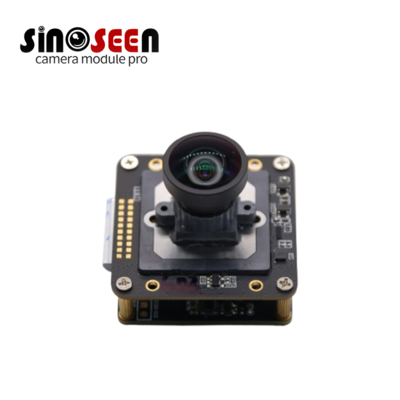

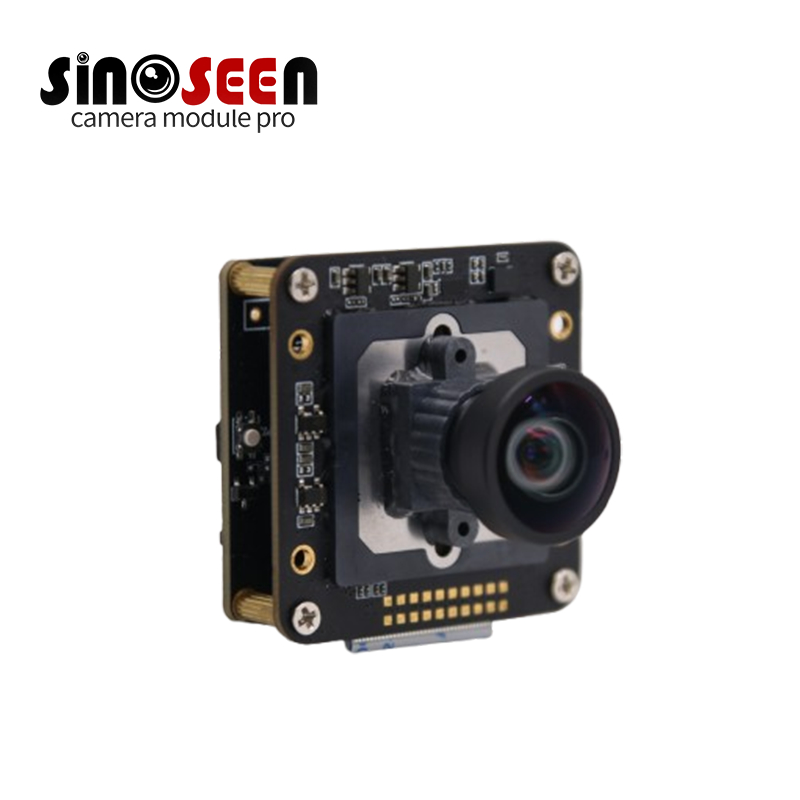

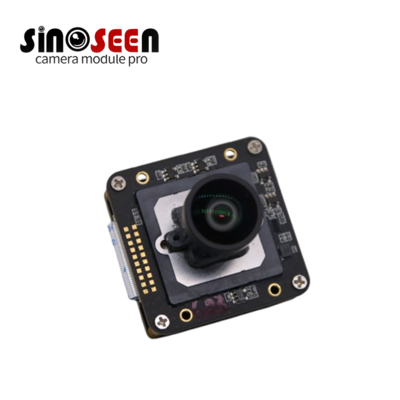

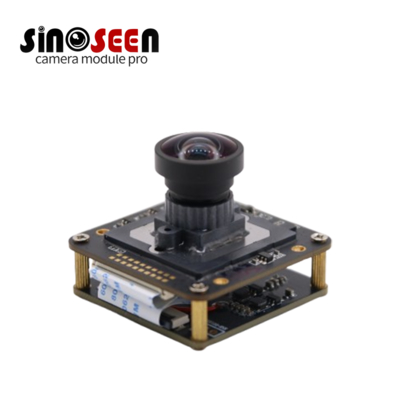

USB Camera Module 1/2.65 CMOS Sensor 2960x1666 Resolution
Dettagli:
| Luogo di origine: | Cina |
| Marca: | Sinoseen |
| Certificazione: | RoHS、ISO9001、CE |
| Numero di modello: | SNS-DZ1225-V1.0 |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 5 |
|---|---|
| Prezzo: | 10-100USD or negotiable |
| Imballaggi particolari: | Vassoio+borsa anti-statica nella scatola del cartone |
| Tempi di consegna: | 2-3 settimane |
| Termini di pagamento: | T/t |
| Capacità di alimentazione: | 500000 pezzi/mese |
|
Informazioni dettagliate |
|||
| Tipo:: | Modulo telecamera USB | Sensore: | Sensore CMOS da 1/2,65 " |
|---|---|---|---|
| Risoluzione: | 2960 × 1666 | Dimensioni: | (compatibile con 32mmx32mm) |
| Evidenziare: | USB camera module with CMOS sensor,high resolution USB camera module,USB camera module 2960x1666 resolution |
||
Descrizione di prodotto
High-Performance USB Camera Module for Surveillance and Industrial Automation Full HD+ video at 30fps
Product Attributes
| Type | USB Camera Module |
|---|---|
| Sensor | 1/2.65" CMOS sensor |
| Resolution | 2960 × 1666 |
| Dimensions | (compatible With 32mmx32mm) |
| High Light | USB Camera Module, Machine Vision 1/2.65" CMOS sensor Camera Module |
Product Introduction
The SNS-DZ1225-V1.0 camera module combines clarity, reliability, and easy integration, making it a versatile imaging solution for surveillance, industrial automation, education, and biometric security. Its 1/2.65" CMOS sensor delivers Full HD+ video at 30fps with vibrant colors and low noise. With a wide 108° field of view and USB2.0 plug-and-play support, this module helps developers accelerate deployment across multiple platforms.
Key Features
- 1/2.65" CMOS sensor with 2960×1666 effective pixels
- Wide FOV (108° diagonal) with low distortion
- Dynamic range up to 81.5dB for balanced exposure
- Compact M12 lens mount for flexible integration
- USB2.0 interface, supports MJPG/YUY2 video output
- Cross-platform compatibility: Windows, Mac, Linux, Android
Technical Specifications
| Parameter | Specification | Remarks |
|---|---|---|
| Module # | SNS-DZ1225-V1.0 | - |
| Image Sensor Size | 1/2.65" CMOS | - |
| Effective Pixels | 2960 × 1666 | ~2.96MP |
| Pixel Size | 2.0µm × 2.0µm | - |
| Output Format | RAW 10-bit, MJPG, YUY2 | - |
| Max Frame Rate | 30fps @ all supported resolutions | - |
| Supported Resolutions | 2944×1656 / 2048×1536 / 1920×1080 / 1600×1200 / 1280×960 / 1280×720 / 800×600 / 640×480 | MJPG |
| SNR (max) | 35dB | - |
| Dynamic Range | 81.5dB | - |
| Min. Illumination | TBD | - |
| Interface | USB2.0 (5pin, 1.25mm) | - |
| Transfer Rate | 480Mbps | - |
| Power Supply | 5V ±5% | - |
| Power Consumption | TBD | No LED / IR-LED optional |
| Operating Temp. | -30℃ to +60℃ | - |
| Storage Temp. | -40℃ to +70℃ | - |
| Lens | EFL 2.8mm ±5%, F/NO 2.4 ±5%, FOV D:108° / H:97° / V:67° ±3° | 4G2P+IR, M12*P0.5 |
| Optical Distortion | < -1% | - |
| Focus Distance | 60cm - ∞ | - |
| PCB Ink | Black | - |
| OS Support | Windows XP/Vista/7/8.1/10, Mac, Android, Linux (UVC) | Plug & Play |
