5MP VB1940 CMOS Camera Module 1/2.8 Inch USB2.0 Plug and Play High-Resolution Sensor for Machine Vision
Dettagli:
| Luogo di origine: | Cina |
| Marca: | Sinoseen |
| Certificazione: | RoHS |
| Numero di modello: | SNS-GM1133-V1.0 |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 5 |
|---|---|
| Prezzo: | 10-100USD、negotiable |
| Imballaggi particolari: | Vassoio+borsa anti-statica nella scatola del cartone |
| Tempi di consegna: | 2-3 settimane |
| Termini di pagamento: | T/t |
| Capacità di alimentazione: | 500000 pezzi/mese |
|
Informazioni dettagliate |
|||
| Tipo di sensore: | CMOS | Dimensione del modulo: | Due strati 38mmX38mm |
|---|---|---|---|
| Input audio: | Input MIC di canale audio | Interfaccia standard: | Alta velocità USB2.0 |
| Dimensione dei pixel: | 1.4µm x1.4µm | Formato codificato: | H.265/H.264 |
| Consumo energetico: | Circa 140mA | Distanza di oggetto: | 6CM-200CM |
| Metodo di guida: | Guida libera | Rapporto focale: | 2.2 |
| Corrente operativa: | 610mA ((VGA) | Max Image Circle: | 4,8 mm |
| Opera d'arte: | Progettazione a 8 strati | Garanzia: | 10 anni |
| Compatibilità: | Windows, Mac, Linux | ||
| Evidenziare: | 5MP USB camera module,VB1940 CMOS sensor camera,machine vision USB2.0 camera |
||
Descrizione di prodotto

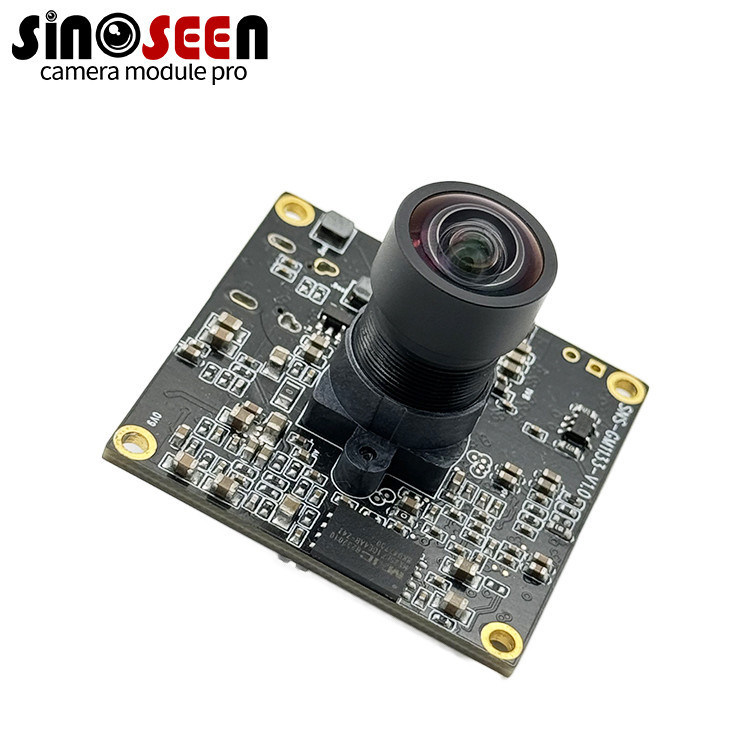

5MP VB1940 CMOS Camera Module
1/2.8 Inch USB2.0 Plug and Play High-Resolution Sensor for Machine Vision
Product Overview
The Sinoseen GM1133 camera module features an advanced 1/2.8" VB1940 CMOS image sensor, delivering sharp 5MP resolution (2592 * 1944) at up to 30 frames per second. With its high-speed USB2.0 interface, this plug-and-play module ensures smooth data transmission up to 480MB/s for seamless integration across various applications.
Key Features
- 1/2.8" VB1940 CMOS image sensor with 5MP resolution (2592 * 1944)
- USB2.0 high-speed interface for plug-and-play operation
- Supports MJPG and YUV video output formats
- Excellent low-light performance and color accuracy
- Compact design for easy system integration
- Compatible with Windows, Linux, Mac, and Android systems
Technical Specifications
| Parameter | Specification | Remarks |
|---|---|---|
| Image Sensor Size | 1/2.8 inch | |
| Effective Pixels | 2592H * 1944V | |
| Pixel Size | 2.0 μm * 2.0 μm | |
| Optical Distortion | <0.45% | |
| Image Sensor Data Output | Raw Bayer 10bits | |
| Video Output | MJPG/YUV | |
| Maximum Frame Rates | 2592 * 1944 @30 FPS 1920 * 1080 @30 FPS 1600 * 1200 @30 FPS |
MJPG |
| Digital Interface | Type-C USB2.0 | 1.5m cable |
| Transfer Rates | 480MB/s | |
| Power Requirements | 5V ±5% | |
| Storage Temperature | -20℃ to 70℃ | |
| Operating Temperature | -10℃ to 60℃ | |
| Supported OS | Windows XP/Vista/7/8.1/10, Mac, Android, Linux 2.6.2 (UVC compliant) | |
| Lens View | M12 * P0.5 | |
| Lens Construction | 3G2P + 650IR | |
| F/NO Aperture | 3.0 ±5% | |
| Effective Focal Length | 4.18 mm ±5% | |
| Field of View | 82° ±3° | |
| Focus Type | Fixed focus | |
| Shooting Distance | 60cm - ∞ |
Applications
Ideal for video conferencing, industrial inspection, surveillance systems, and educational applications. The module's stable performance and customizable image settings make it perfect for developers and engineers requiring high-quality imaging solutions.
