2MP MIPI Camera Module with OV2311 Sensor | Full HD 1080P @30fps for Embedded and Industrial Vision
Dettagli:
| Luogo di origine: | Shenzhen, Cina |
| Marca: | Sinoseen |
| Certificazione: | RoHS |
| Numero di modello: | WD-CK-37P-V1.0 |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 3 |
|---|---|
| Prezzo: | 10-100usd、negotiable |
| Imballaggi particolari: | Vassoio+borsa anti-statica nella scatola del cartone |
| Tempi di consegna: | 2-3 settimane |
| Termini di pagamento: | T/t |
| Capacità di alimentazione: | 500000 pezzi/mese |
|
Informazioni dettagliate |
|||
| Tipo: | modulo della macchina fotografica | Sensore: | 1/3" |
|---|---|---|---|
| Risoluzione: | H1928*V1088 | Dimensioni: | (personalizzabile) |
| FOV della lente: | 180° (opzionale) | Tipo di messa a fuoco: | Focus fisso |
| Interfaccia: | Mipi | Caratteristica: | Variabile velocità di scatto |
| Evidenziare: | 2MP MIPI camera module with OV2311 sensor,Full HD 1080P camera module for industrial vision,2MP camera module with 30fps performance |
||
Descrizione di prodotto
2MP MIPI Camera Module with OV2311 Sensor | Full HD 1080P @30fps for Embedded and Industrial Vision
Product Overview

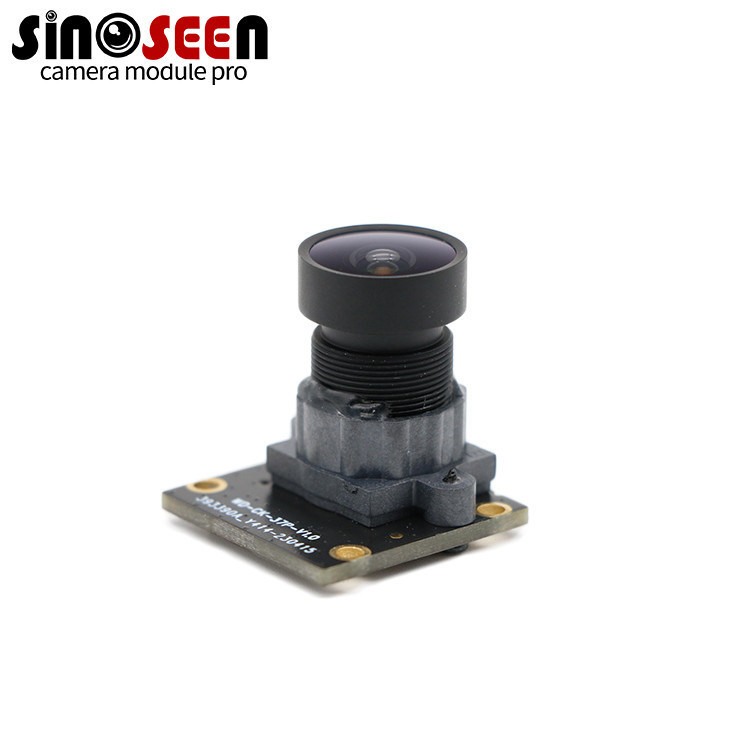

The Sinoseen 2MP MIPI camera module features the Omnivision OV2311 CMOS image sensor, delivering Full HD 1080P video at 30 frames per second. It ensures smooth and detailed imaging with low power consumption and high sensitivity, making it ideal for industrial inspection, embedded vision, and AI systems.
Equipped with a MIPI CSI-2 interface, this module offers fast, stable image transmission and excellent compatibility with Raspberry Pi, Jetson Nano, and other SBCs. Its M12 lens mount allows flexible lens replacement to meet various field-of-view requirements.
The OV2311 camera supports adjustable parameters such as brightness, contrast, and white balance, ensuring high-quality, true-to-life color reproduction. It's a reliable choice for engineers and developers seeking a compact, high-performance MIPI camera module for integration into visual applications.
Key Features
- 2MP OV2311 CMOS sensor, 1/3" optical format
- Full HD 1080P @30fps smooth video performance
- MIPI CSI-2 interface for high-speed data transmission
- M12 lens mount, supports custom FOV and focal lengths
- Low power, high sensitivity, ideal for embedded and AI systems
Technical Specifications
| Sensor | 1/3" |
|---|---|
| Most effective pixels | H1928*V1088 |
| Pixel Size | 2.7μm x 2.7μm |
| Compression format | MJPG / YUY2 |
| Shutter Type | Electronic rolling shutter |
| Focus type | Fixed focus |
| Interface type | mipi |
| Adjustable parameters | Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure |
| Lens |
Focal length: 3.6mm FOV:D180° H180°V180°F/N(2.0) Thread Size: M12*P0.5 |
| Power supply | USB BUS POWER |
| Power consumption | DC 5V, 200mA |
| Operating temperature | 0～60℃ |
| Storage temperature | -20～80℃ |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Available USB Solutions
0.3MP
- Low cost: BF3703 BF2103 GC0329 GC0309 GC0307 GC032A OV7675
- Big size: GC0308(1/6.5") GC0328(1/6.5") GC0403(1/3"-0.4MP) BF3A03(1/6.5")
- Global shutter: OV7251 (1/7.5",B/W)
- High frame rate: 200FPS SC031GS(1/6",B/W)
- Big size with high frame rate: OV7725(1/4",60FPS), OV7740(1/5",60FPS)
1MP
- Low cost: GC1024 GC1034 GC1064(H264) H42 H62 SP1405 OV9712 OV9732 NT99141 SC1245 OV9760
- Small size for endoscope: OV9734 GC1009 HM1091
- Global shutter: OV9281(1/4",B/W) OV9782(1/4",color) AR0144(1/4",color) AR0135(1/3",color)
- Big size (30FPS): AR0130(1/3",B/W) OV10635(1/2.7",color,WDR,960P) H65(1/3",color,960P)
2MP
- Normal(10FPS): GC2145(1/5") BF2206(1/5")GC2335 OV2643 HM2056 BF3925 OV2755(1/5" HD)
- 1080P low cost: F23 F37 F35 SP2305 GC2053 GC2023 AR0330(300W) SC2232H C2390 IMX322 C2395 SC2315 AR0237
- 1080P small size (30FPS): OV2732(1/4") OV2740(1/4") OV2722(1/6") SC2145(1/4") HM2160(1/6")
- 1080P@60FPS: OV2710 HM2131 IMX307 C2395 SC2315 F35 SC2310
- 1080P-HDR (30FPS): OV2735 OV2718 PS5268 IMX307
- 1080P-WDR (30FPS): AR0230 AR0331(300W)
- 1080P-Starvis (30FPS): IMX291 IMX307 IMX323 IM290
- 1080P big size: IMX385
- 1080P global shutter: OG02B10(color) OG02B1B(B/W)
