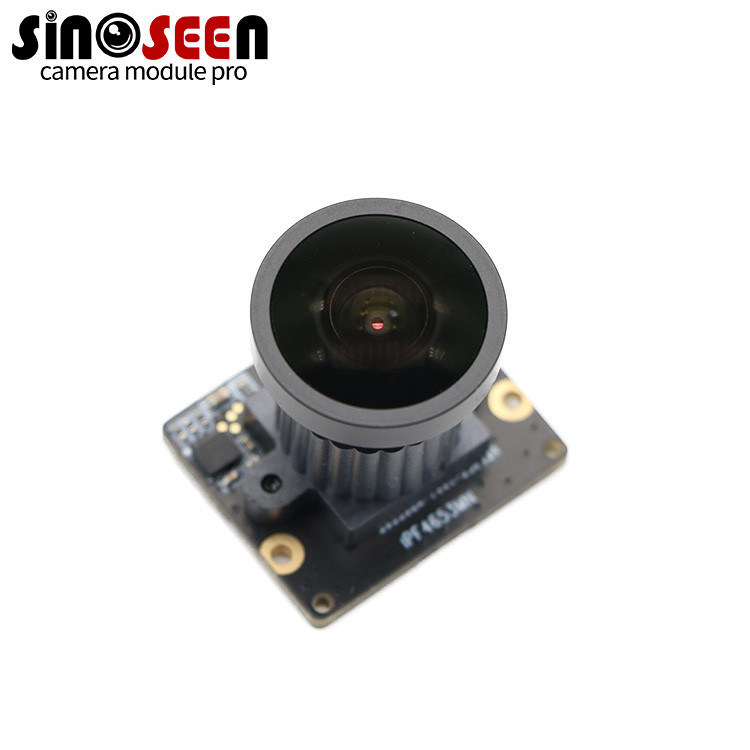

4MP MIPI Camera Module with Wide Angle Lens and High Resolution Sensor for Embedded and Robotics Applications
Dettagli:
| Luogo di origine: | Shenzhen, Cina |
| Marca: | Sinoseen |
| Certificazione: | RoHS |
| Numero di modello: | SNS-DZ1024-V1 |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 |
|---|---|
| Prezzo: | 10-100USD、negotiable |
| Imballaggi particolari: | Vassoio+borsa anti-statica nella scatola del cartone |
| Tempi di consegna: | 2-3 settimane |
| Termini di pagamento: | T/t |
| Capacità di alimentazione: | 500000 pezzi/mese |
|
Informazioni dettagliate |
|||
| Tipo: | modulo della macchina fotografica 4mp | Sensore: | 1/3" 4Mega CMOS |
|---|---|---|---|
| Dimensioni: | (personalizzabile) | Tipo di messa a fuoco: | Focus fisso |
| Interfaccia: | Mipi | Caratteristica: | HD |
| Evidenziare: | 4MP MIPI camera module,wide angle MIPI camera,high resolution embedded camera |
||
Descrizione di prodotto
4MP MIPI Camera Module with Wide Angle Lens and High Resolution Sensor
Product Description
The 4MP MIPI camera module features a 1/2.8-inch CMOS sensor with a resolution of 2592x1944 pixels, delivering high-definition imaging performance. Its wide-angle lens provides an expanded field of view, making it ideal for applications such as robotics, drones, surveillance, and industrial inspection.
The module supports the MIPI CSI-2 interface, ensuring stable data transmission and broad compatibility with single-board computers (SBCs) and embedded systems. It delivers smooth and consistent video output, ideal for real-time image processing.
With support for auto exposure, white balance, and gain control, the module maintains clear image quality under varying lighting conditions. Its compact size and low power consumption allow for easy integration into space-limited designs.
Highlights
- 4MP (2592x1944) CMOS image sensor for high-resolution imaging
- Wide angle lens expands the field of view for broader coverage
- MIPI CSI-2 interface for fast data transmission and SBC compatibility
- Auto exposure and white balance control ensure stable image quality
Specification
| Model No | SNS-DZ1024-V1 |
|---|---|
| Sensor | 1/3''4Mega Cmos |
| Pixel | 4 Mega Pixel |
| Compression format | YUYV/MJPEG |
| Resolution & Frame rate | See above |
| Shutter Type | Electronic rolling shutter |
| Focus type | Fixed focus |
| Interface type | USB2.0 high speed |
| Adjustable parameter | Brightness/Contrast/Color saturation/Hue Definition/White balance/Exposure |
| Power supply | mipi |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control | Support |
| Auto White Balance | Support |
| Auto Gain Control | Support |
| Support OS | WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Current available USB solution
0.3MP
- Low cost: BF3703 BF2103 GC0329 GC0309 GC0307 GC032A OV7675
- Big size: GC0308(1/6.5") GC0328(1/6.5") GC0403(1/3"-0.4MP) BF3A03(1/6.5")
- Global shutter: OV7251 (1/7.5",B/W)
- High frame rate: 200FPS SC031GS(1/6",B/W)
- Big size with high frame rate: OV7725(1/4",60FPS), OV7740(1/5",60FPS)
1MP
- Low cost: GC1024 GC1034 GC1064(H264) H42 H62 SP1405 OV9712 OV9732 NT99141 SC1245 OV9760
- Small size for endoscope: OV9734 GC1009 HM1091
- Global shutter: OV9281(1/4",B/W) OV9782(1/4",color) AR0144(1/4",color) AR0135(1/3",color)
- Big size (30FPS): AR0130(1/3",B/W) OV10635(1/2.7",color,WDR,960P) H65(1/3",color,960P)
2MP
- Normal(10FPS): GC2145(1/5") BF2206(1/5")GC2335 OV2643 HM2056 BF3925 OV2755(1/5" HD)
- 1080P low cost: F23 F37 F35 SP2305 GC2053 GC2023 AR0330(300W) SC2232H C2390 IMX322 C2395 SC2315 AR0237
- 1080P small size (30FPS): OV2732(1/4") OV2740(1/4") OV2722(1/6") SC2145(1/4") HM2160(1/6")
- 1080P@60FPS: OV2710 HM2131 IMX307 C2395 SC2315 F35 SC2310
- 1080P-HDR (30FPS): OV2735 OV2718 PS5268 IMX307
- 1080P-WDR (30FPS): AR0230 AR0331(300W)
- 1080P-Starvis (30FPS): IMX291 IMX307 IMX323 IM290
- 1080P big size: IMX385
- 1080P global shutter: OG02B10(color) OG02B1B(B/W)
5MP
- 500W (15FPS): OV5648 GC5025 OV5640 OV5643 OV5693(up to 30FPS) 4EC OV5650
- FHD 500W(30FPS): OS05A10 PS5520 HM5532 MI5100 MT9P001 IMX335 SC5335 AR0521 JXK05 OV4689(2K,1/3")
8MP
- 800W (15FPS): IMX219(1/4")S5K3H7 IMX179 C8390
- 8M-4K UHD (30FPS): IMX317 IMX415 OS08A10(big size 1/1.8")
13MP-16MP
- IMX214(13M) IMX258(13M) IMMX298(16M)
USB3.0
- IMX335 OV5648 IMX179 IMX307 PS5268
H264
- GC1064 OV2710 OV2735 OV9732 AR0130 AR0230 AR0330 H65 H62 IMX291 IMX322 IMX323 OV2718 OV2732
