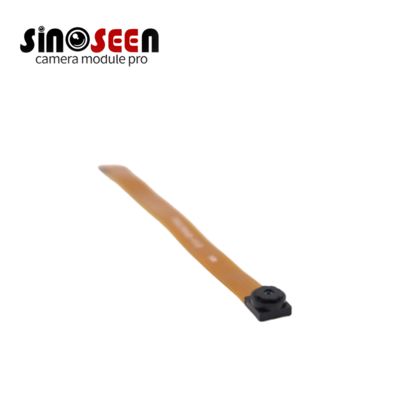

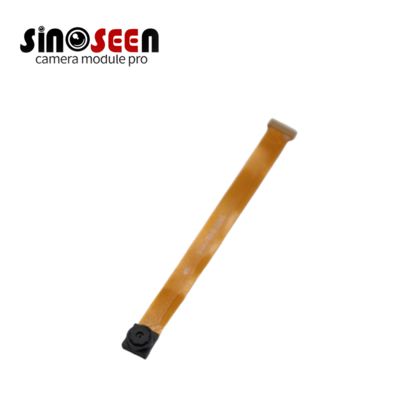

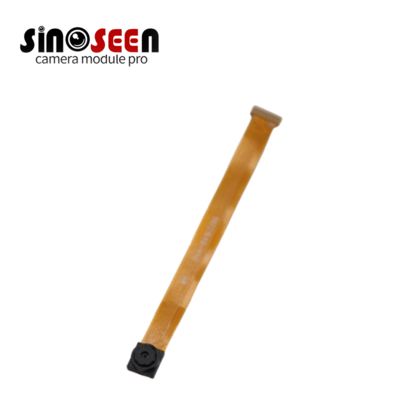

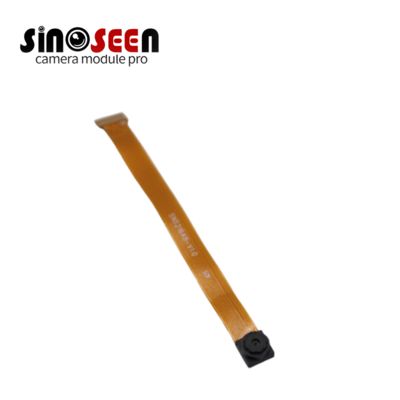

GC2145 DVP Camera Module 2MP 1616x1232 for Smart Home and UAVs
Dettagli:
| Place of Origin: | China |
| Marca: | Sinoseen |
| Certificazione: | RoHS、ISO9001、CE |
| Model Number: | SNS21648-V1.0 |
Termini di pagamento e spedizione:
| Minimum Order Quantity: | 5 |
|---|---|
| Prezzo: | 10-100USD or negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3week |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Informazioni dettagliate |
|||
| Type:: | dvp Camera Module | Sensor: | GC2145 |
|---|---|---|---|
| Resolution: | 1616×1232 | Dimensions: | (compatible With 32mmx32mm) |
| Evidenziare: | DVP camera module 2MP resolution,DVP camera module for smart home,DVP camera module UAV compatible |
||
Descrizione di prodotto
| Attribute | Value |
|---|---|
| Type | dvp Camera Module |
| Sensor | GC2145 |
| Resolution | 1616×1232 |
| Dimensions | (compatible With 32mmx32mm) |
| High Light | dvp Camera Module, Machine Vision GC2145 Camera Module |

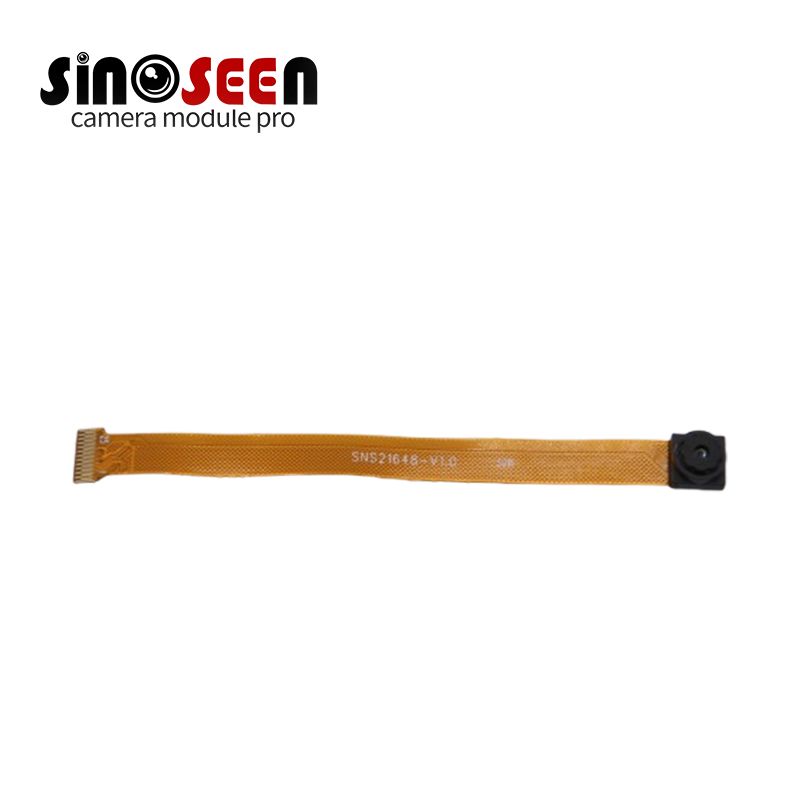

The SNS21648-V1.0 camera module, based on the GC2145 2MP CMOS sensor, delivers high-quality imaging with resolutions up to 1616 ×1232 and frame rates up to 30fps at lower resolutions.
Its on-chip ISP automatically adjusts exposure and white balance, denoises, and corrects color, producing smooth and accurate images even under varying lighting.
Compact in size (76.5×6.5mm) and low in power consumption (180mW), the module is well suited for applications including smart home devices, digital signage, barcode scanning, face recognition, video doorbells, UAVs, toy cameras, dashcams, action cameras, and high-speed document scanners. It supports multiple platforms including RK, Qualcomm, Allwinner, MTK, Spreadtrum, HiSilicon, and STM32.
- Smart home & IoT devices - capture clear images in dynamic lighting
- Barcode and QR scanning - fast, accurate detection
- Face recognition & security cameras - reliable imaging for surveillance
- Drone and action cameras - compact size, high frame rates
- Industrial & document scanning - consistent quality under varying temperatures
- High-quality 2MP sensor with integrated ISP
- Multiple resolutions and output formats
- AE/AWB, color correction, and noise reduction built-in
- Electronic rolling shutter and low power consumption
- Flexible platform compatibility
| Parameter | Specification |
|---|---|
| Module Model | SNS21648-V1.0 |
| Sensor | GC2145 |
| Resolution | 1616×1232 (UXGA) |
| Max Frame Rate | 15fps @24MHz (UXGA), 30fps @24MHz (SVGA/other resolutions) |
| Pixel Size | 1.75µm × 1.75µm |
| Optical Format | 1/5 inch |
| Shutter | Electronic Rolling Shutter |
| Output Interface | DVP |
| Output Formats | Bayer RGB, RGB565, YCbCr4:2:2 |
| Power Consumption | 180mW (Active) |
| Supply Voltage | AVDD 2.7-3.0V, DVDD 1.7-1.9V, IOVDD 1.7-3.0V |
| SNR | 37.5 dB |
| Dynamic Range | 65 dB |
| Dark Current | 4.2 mV/s |
| Sensitivity | 1260 mV/Lux*s |
| Operating Temp | -20℃ ~ 70℃ |
| Stable Image Temp | 0℃ ~ 50℃ |
| CRA | 25° (non-linear) |
| Package | CSP / wafer |
| Module Size | 76.5 × 6.5 mm |
| FOV | 90° (optional) |
