0.3MP Fixed Focus IR Filter DVP Camera Module With Omnivision OV7740 CMOS Sensor
Dettagli:
| Luogo di origine: | Guangdong, Cina |
| Marca: | sinoseen |
| Numero di modello: | SNS-DualOV9732-M1.0 |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 5 |
|---|
|
Informazioni dettagliate |
|||
| Vista dell'obiettivo: | 60° | Formato di compressione video: | H.264 |
|---|---|---|---|
| Temperatura di conservazione: | -30°C a 85°C | Temperatura operativa: | Da 0°C a 60°C |
| Sensore di immagine: | OV7740 | Interfacce seriali: | DVP |
| Pixel effettivi: | 640 x 480 | Dimensione pixel: | 4,2μm x 4,2μm |
| Uscita video: | Bayer grezzo 10 bit/8 bit | Dimensioni dell'array attivo: | 640×480 a 60 fps, 320×240 a 120 fps |
| Dimensioni del sensore: | 1/5" | Distorsione TV: | <1% |
| Tensione operativa: | AVDD:3,0~3,6V DOVDD:1,7~3,6V DVDD:1,7~1,9V | Intervallo di temperatura di conservazione: | -20~70℃ |
| Lunghezza cavo USB: | difetto | ||
| Evidenziare: | 0.3MP fixed focus camera module,IR filter DVP camera module,Omnivision OV7740 CMOS sensor |
||
Descrizione di prodotto
0.3MP Fixed Focus IR Filter DVP Camera Module
This professional camera module features the Omnivision OV7740 CMOS sensor with DVP interface, delivering reliable imaging performance for industrial applications.
Key Features
- 0.3MP resolution with 640×480 effective pixels
- Omnivision OV7740 CMOS sensor technology
- DVP interface with Raw Bayer 10bit/8bit video output
- Lens compensation and automatic white balance functions
- High frame rates: 60fps at 640×480, 120fps at 320×240
- Compact 1/5" sensor size with 4.2μm pixel size
- Support for AEC, AEB, and AGC functions
- Customizable lens options and dimensions
Technical Specifications
| Parameter | Specification |
|---|---|
| Module Number | SNS-FPC7740-V1 |
| Pixel Size | 4.2μm × 4.2μm |
| Effective Pixels | 640×480 |
| Video Output | Raw Bayer 10bit/8bit |
| Active Array Size | 640×480 @ 60fps, 320×240 @ 120fps |
| Image Sensor | 1/5" Omnivision OV7740 |
| Lens View | FOV60° (optional), F/N (optional) |
| TV Distortion | <1% |
| Operating Voltage | AVDD: 3.0~3.6V, DOVDD: 1.7~3.6V, DVDD: 1.7~1.9V |
| Operating Temperature | 0～60℃ |
| Storage Temperature | -20～70℃ |
| Dimensions | Customizable |

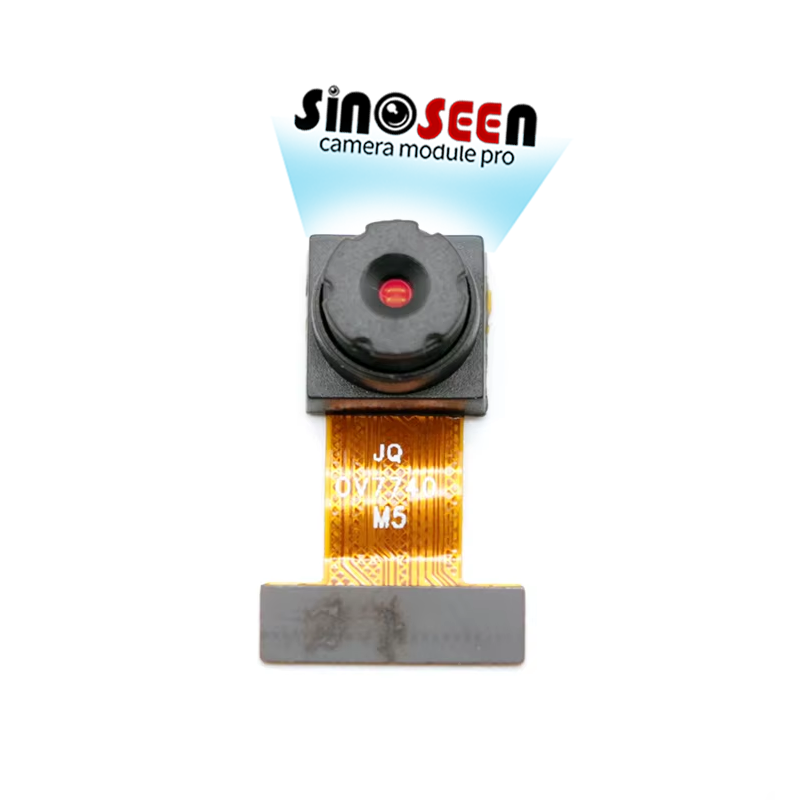

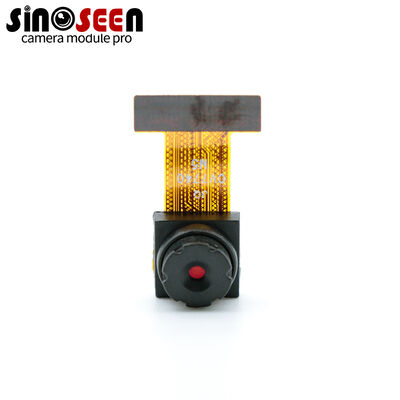

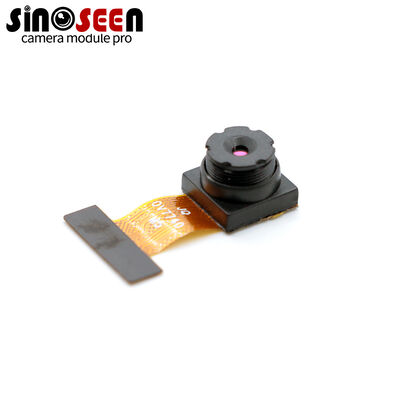

Product Images
Customization Services
We specialize in OEM/ODM customized CMOS image processing solutions, offering complete design, development, manufacturing, and after-sales services. Our expertise includes USB, MIPI, and DVP camera modules for various applications.
Application Areas
Machine vision, intelligent systems, security solutions, IoT devices, iris recognition, face recognition, VR applications, smart home solutions, UAV/drone cameras, mobile phone modules, and professional imaging systems.
Customization Process
We work closely with clients to determine optimal camera solutions based on application requirements, structural constraints, image quality needs, lighting conditions, and budget considerations.
Quality Assurance
Shenzhen Sinoseen Technology provides competitive pricing and quality assurance with comprehensive certifications and testing procedures.
Contact us to discuss your specific camera module requirements and receive customized solutions tailored to your application needs.
